ASTM-A252-Pipe

ASTM A252 Piling Pipe application in buildings and retaining walls

Short Description:

ASTM/ASME A252/SA252 steel piling pipe is a structural pipe ideally suited for application in buildings, retaining walls, and other structures needing solid, dependably, quality made steel piling pipe as its structure.
Share
down load to pdf

Details

Tags

product display

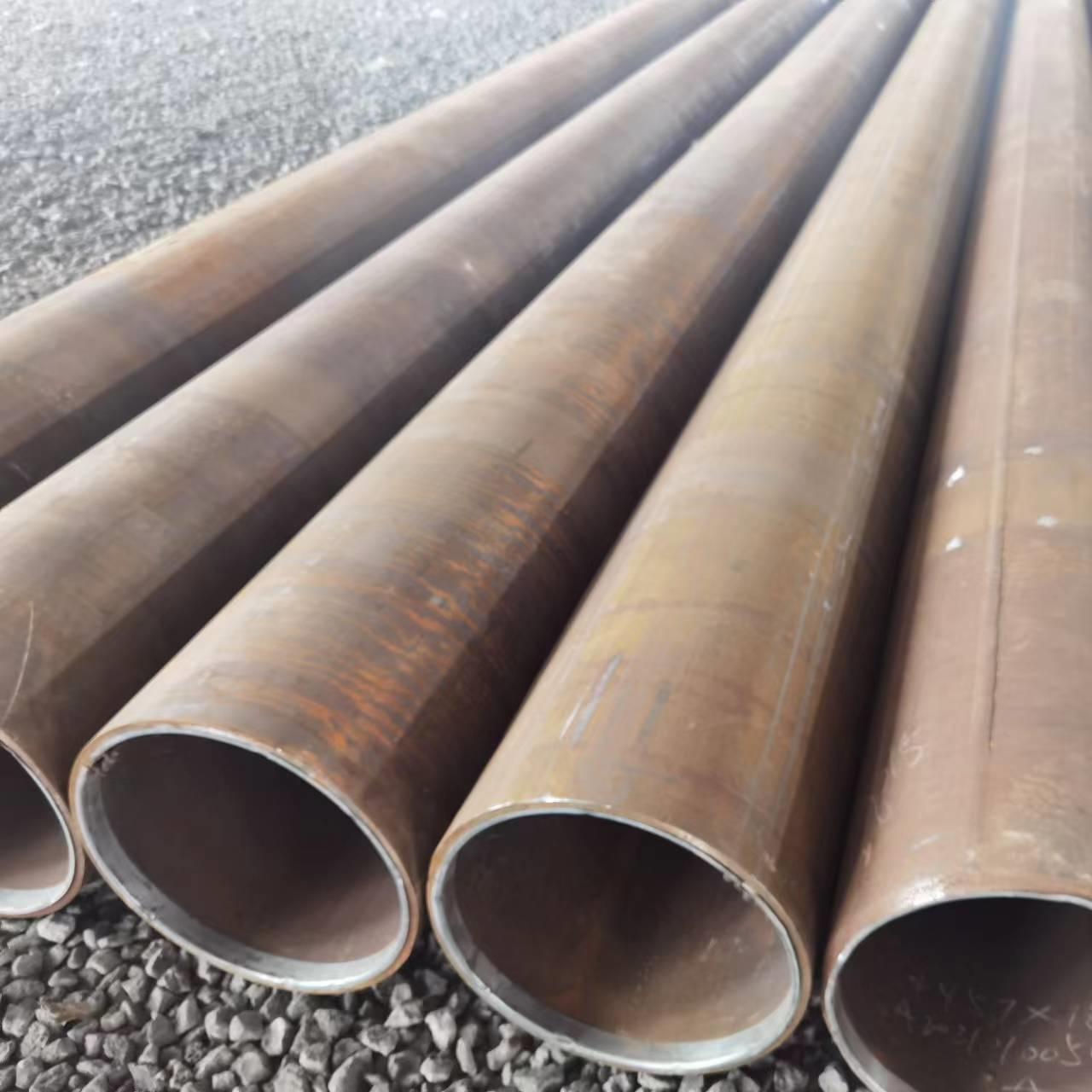

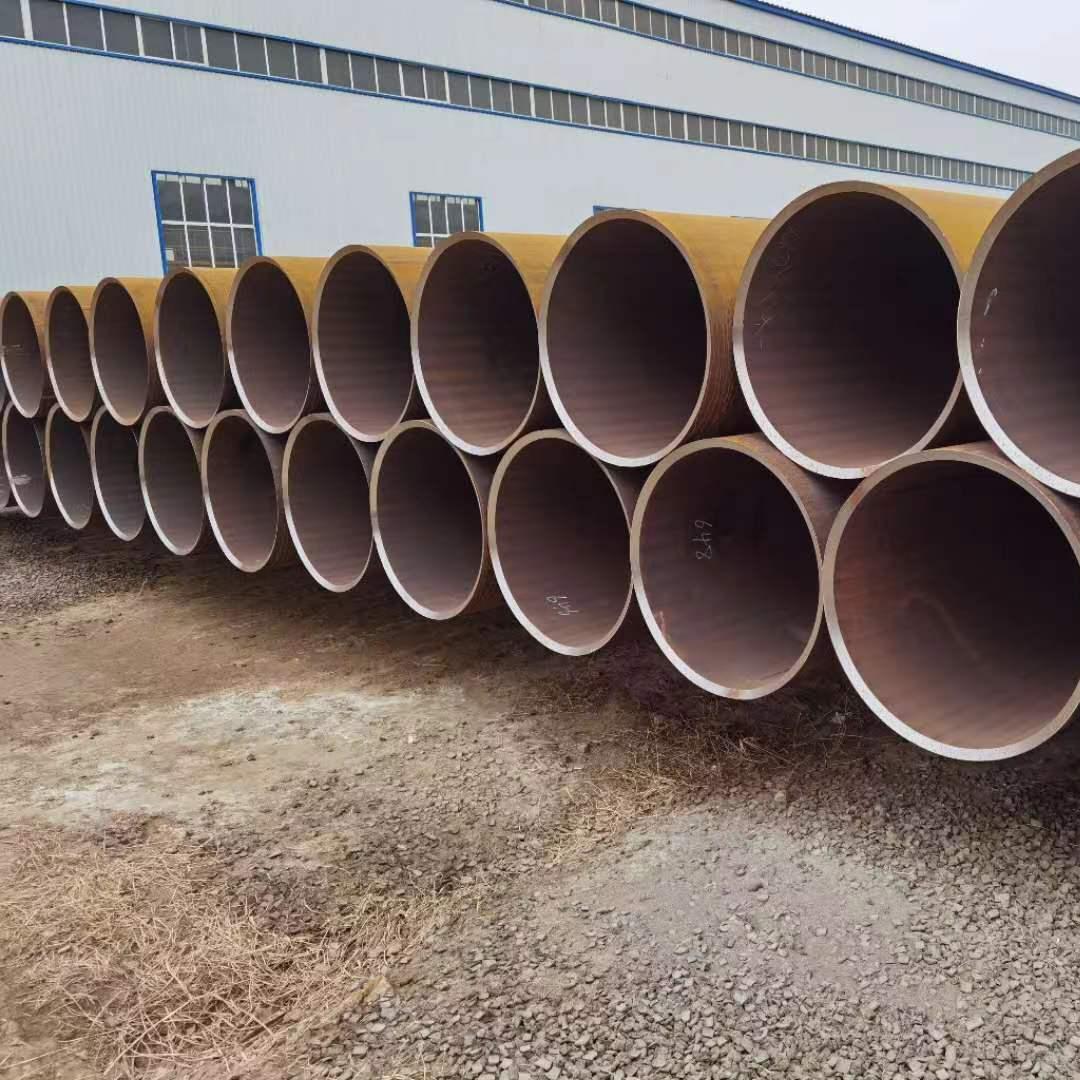

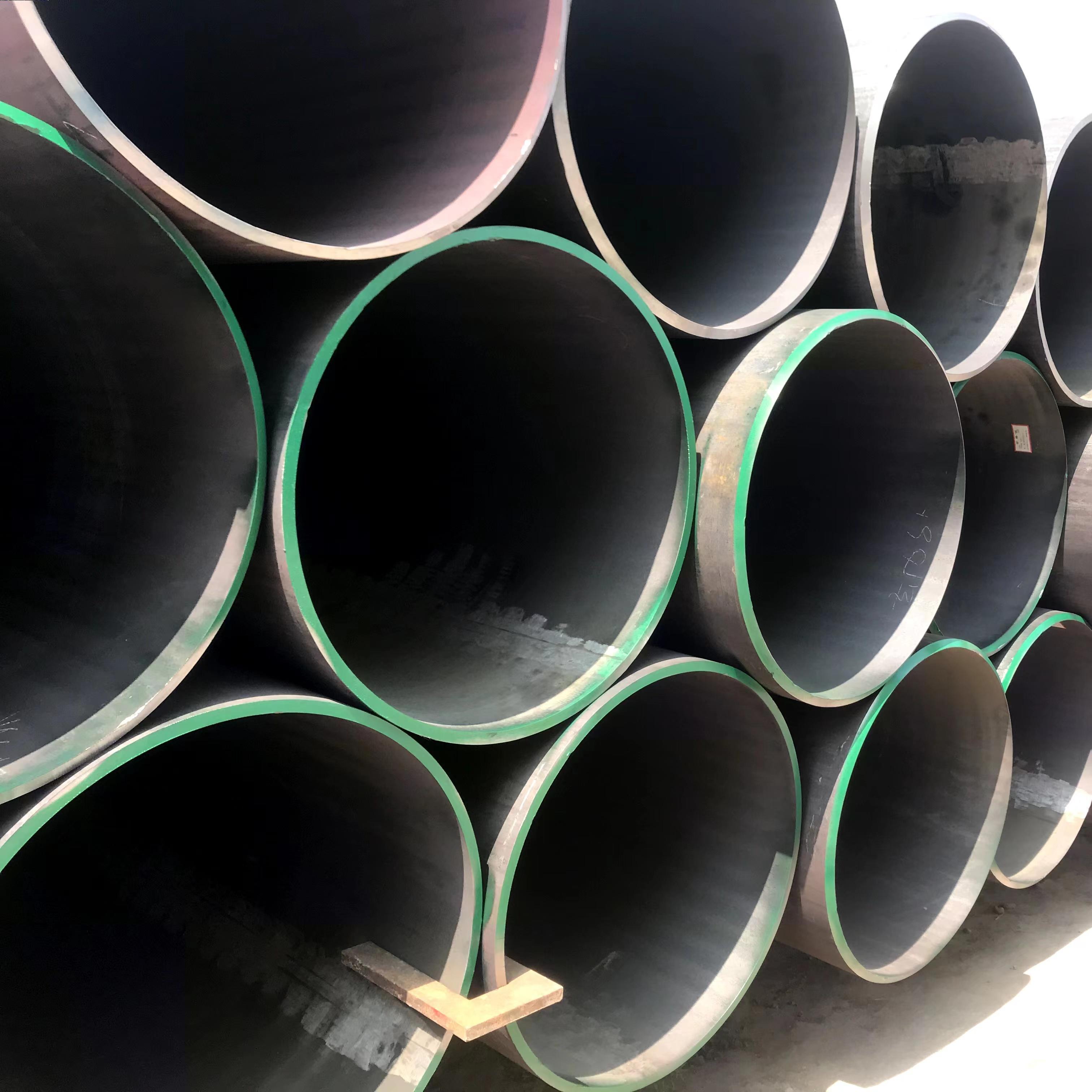

  • ASTM A252 Piling Pipe application in buildings and retaining walls
  • ASTM A252 Piling Pipe application in buildings and retaining walls

product introduction

ASTM A252 Steel Pipe Pile
Similar to H-piles, pipe piles of ASTM A252 carbon steel are also designed to transfer structural loads through the foundation to soils below. Where H-piles are typically classified as point bearing, pipe piles are most efficient as friction piles. Piling pipes have substantial surface area that interacts with the surrounding soil to provide great frictional load resistance.
Piling pipes are also used in conjunction with sheet piles to add lateral stiffness and bending resistance where loads exceed the capacity of sheet piles alone.
The steel pipe pile has the advantages of novel design and simple structure.lt is convenient to use and overlap during construction. When used in cofferdams, steel pipe piles can play the role of surrounding water, soil and sand. In addition, according to their different application, steel pipes can also be divided into pipes for pipe piling, pipes for machinery industry, pipes for petroleum geological drilling, etc.. Steel pipe piles are widely used in offshore engineering or marine engineering to create a solid foundation.

MECHANICAL PROPERTIES – TENSILE REQUIREMENTS:

 MECHANICAL PROPERTIES Grade 1 Grade 2 Grade 3
Tensile Strength min. psi (MPa) 50,000 (345) 60,000 (415) 66,000 (455)
Yield Strength min. psi (MPa) 30,000 (205) 35,000 (240) 45,000 (310)

CHEMICAL REQUIREMENTS FOR A252:

 CHEMICAL REQUIREMENTS Phosphorus
Seamless and Welded Steel Pipe Max (%): 0.050

API 5L steel pipe

LSAW Pipe

Testing Requirements for seamless and welded A252 steel piling pipe
(1)Hydrostatic Testing: Not specified.
(2)Mechanical Tests: Tensile Test: Either longitudinal or transverse at option of manufacturer.
(3)Number of Tests: One tensile test per 200 lengths.

Permissible Variations for A252 steel piling pipe
(1)Wall thickness: Not more than 12.5% under the nominal wall thickness specified.
(2)Weights per foot: Each length of pipe pile shall be weighed separately and its weight shall not vary more than 15 % over or 5 % under its theoretical weight, calculated using its length and its weight per unit length.
(3)Outside diameter: Shall not vary more than plus or minus 1% from the diameter specified.

Lengths of A252 steel piling pipe
Pipe piles shall be furnished in single random lengths,double random lengths, or in uniform lengths as specified in the purchase order, in accordance with the following limits:
(1)Single random lengths: 16ft to 25ft inclusive (4.88 to 7.62 m)
(2)Double random lengths: Over 25ft (7.62m) with a minimum average of 35ft (10.67m)
(3)Uniform lengths: as specified length with a permissible variation of plus or minus 1 inch
Ends:
Pipe piles shall be furnished with plain ends. Unless otherwise specified, pipe piles shall have either flame–cut or machine–cut ends, with the burrs at the ends removed. Where ends are specified to be beveled, they shall be beveled to an angle of 30° (+5°, −0°), measured from a line drawn perpendicular to the axis of the pipe pile.
